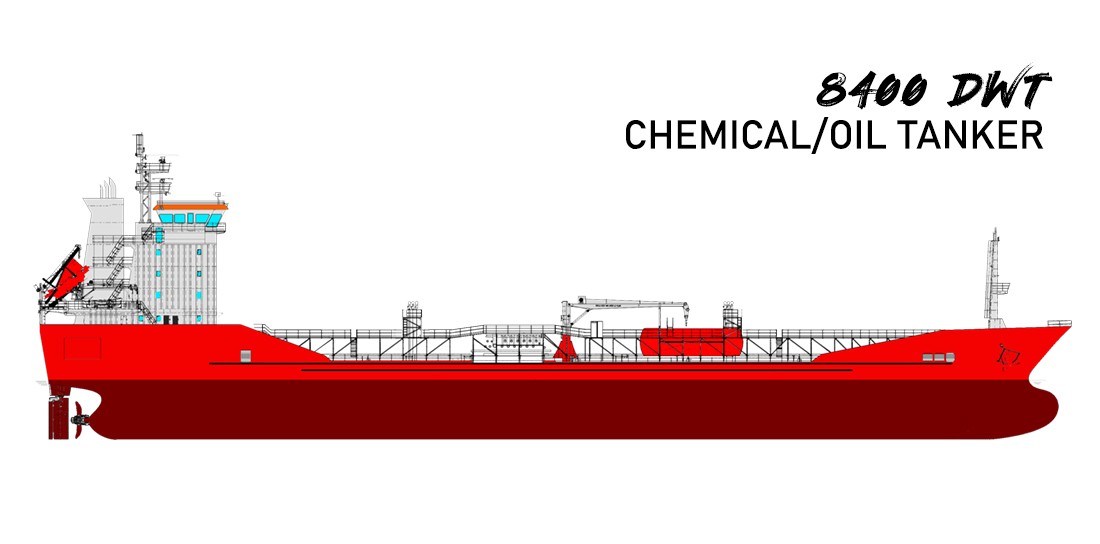

8400 DWT


GENERAL

YARD NAME

Ereğli Shipyard

BASIC FUNCTIONS

Chemical / Oil Tanker

CLASSIFICATION

BUREAU VERITAS  ✠  HULL ✠ MACHINERY, OIL&CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION,*AUT-UMS, CLEAN SHIP, MON SHAFT, ICE CLASS 1A, MANOVR, AVM-APS, IMO II, VCS, INWATERSURVEY.



MAIN PARTICULARS (Approx.)

LENGTH OVERALL

123,900 m

LENGTH BETW. PERP.

116,267 m

BREATH, MLD

17,2 m

DEPTH, MLD

9,20 m

DRAUGHT, DESIGN

6,70 m

DEADWEIGHT

8.400 DWT

SERVICE SPEED

14,0 knots

COMPLEMENT

17+1



MACHINERY

MAIN ENGINE

MAK/8M32C

POWER / RPM

4000 kW at 600 rpm

SPECIFIC FUEL CONSUMPTION

abt.177g/kWh at 85% output

CONTROLLABLE PITCH PROPELLER

abt.139 rpm

BOW THRUSTER (KW)

430 kW

POWER SUPPLY DIESEL GENERATORS

585kW at 1800 rpm

EMERGENCY DIESEL GENERATOR

150kW at 1800 rpm

SHAFT ALTERNATOR

1400 kW

VOLTAGE & FREQUENCY OF VESSEL

440V & 60Hz

CARGO PUMPING SYSTEM

Hydraulic Deepwell Cargo Pump



TANK CAPACITIES (Approx.)

CARGO TANK 1 P & STB

1708,88cbm

CARGO TANK 2 P & STB

1565,49cbm

CARGO TANK 3 P & STB

1572,026cbm

CARGO TANK 4 P & STB

1654,76cbm

CARGO TANK 5 P & STB

1323,81cbm

CARGO TANK 6 P & STB

1347,838cbm

Total

9360,570 cbm



OTHER TANK CAPACITIES (Approx.)

HEAVY FUEL OIL

353,588cbm

MARINE DIESEL OIL

63,072cbm

LUBRICATING OIL

50,830cbm

FRESH WATER.

345,118cbm

BALLASTING / HEELING WATER

3824,453cbm

CRUISING RANGE

appr. 500 nautical miles
