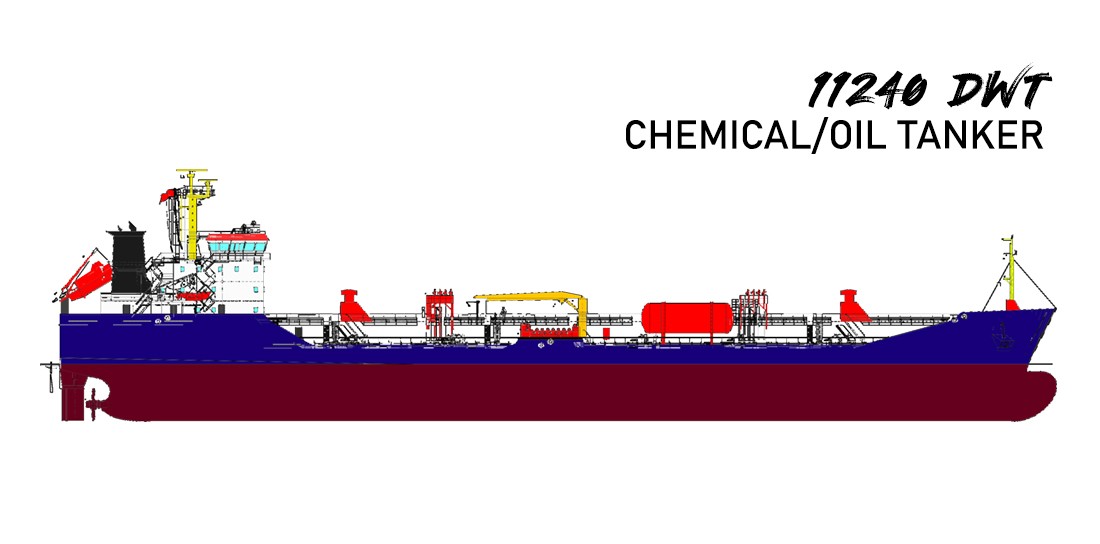

11.240 DWT
|
GENERAL |
|
|
YARD NAME |
Ereğli Shipyard |
|
BASIC FUNCTIONS |
Chemical / Oil Tanker |
|
CLASSIFICATION |
BUREAU VERITAS ✠ OIL AND CHEMICAL TANKER ESP, IMO TYPE II, UNRESTRICTED NAVIGATION, ICE 1A, CLEAN SEA, CLEAN AIR, AUT-UMS, AVM-APS, IG, MON-SHAFT, INWATERSURVEY, CARGO CONTROL, VCS |
|
MAIN PARTICULARS (Approx.) |
|
|
LENGTH OVERALL |
129,85 m |
|
LENGTH BETW. PERP. |
124,65 m |
|
BREATH, MLD |
19,80 m |
|
DEPTH, MLD |
9,95 m |
|
DRAUGHT, DESIGN |
7,45 m |
|
DEADWEIGHT |
11.240 DWT |
|
SERVICE SPEED |
13,0 knots |
|
COMPLEMENT |
16+1 |
|
MACHINERY |
|
|
MAIN ENGINE |
MAK/9M32C |
|
POWER / RPM |
4500 kW at 600 rpm |
|
SPECIFIC FUEL CONSUMPTION |
abt.177g/kWh at 85% output |
|
CONTROLLABLE PITCH PROPELLER |
abt.155 rpm |
|
BOW THRUSTER (KW) |
500 kW |
|
DIESEL GENERATORS |
590kW at 1800 rpm |
|
EMERGENCY DIESEL GENERATOR |
150kW at 1800 rpm |
|
SHAFT ALTERNATOR |
1500kW at 1800 rpm |
|
VOLTAGE & FREQUENCY OF VESSEL |
440V & 60Hz |
|
CARGO PUMPING SYSTEM |
14 FRAMO Cargo pumps at 335 m3/hr each |
|
TANK CAPACITIES (Approx.) |
|
|
CARGO TANK 1 P & STB |
1.490cbm |
|
CARGO TANK 2 P & STB |
1.779cbm |
|
CARGO TANK 3 P & STB |
1.845cbm |
|
CARGO TANK 4 P & STB |
1.843cbm |
|
CARGO TANK 5 P & STB |
1.844cbm |
|
CARGO TANK 6 P & STB |
1.839cbm |
|
CARGO TANK 7 P & STB |
1.633cbm |
|
SLOP TANK P&S |
247cbm |
|
Total |
12.520cbm |
|
OTHER TANK CAPACITIES (Approx.) |
|
|
HEAVY FUEL OIL |
546cbm |
|
MARINE DIESEL OIL |
123cbm |
|
LUBRICATING OIL |
26cbm |
|
FRESH WATER. |
240cbm |
|
BALLASTING / HEELING WATER |
4.945cbm |
|
CRUISING RANGE |
10.000 sm |
