| GENERAL |
| DESIGN |

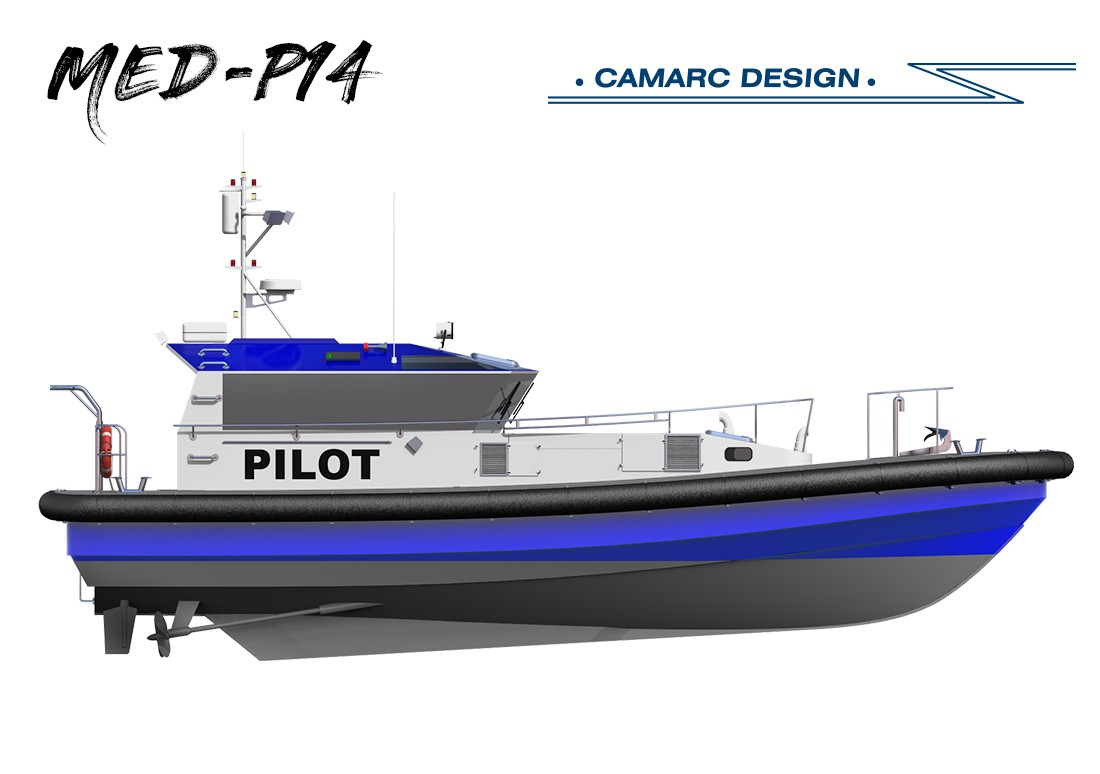

Camarc Design |
| BASIC FUNCTIONS |
Pilot Service |
| HULL / SUPERSTRUCTURE |
Steel / Aluminum |
| OPTIONAL |
Steel / Steel |
| CLASSIFICATION |
RINA C ✠HULL, • MACH, FAST PILOT BOAT, LIGHTSHIP, SEA AREA 3 |
| |
|
| |
|
| DIMENSIONS |
| LENGTH O.A. INC.FENDERS |
15,00 m |
| LENGTH O.A. |
14,20 m |
| BEAM INC. FENDERS |
5,00 m |
| BEAM |
4,20 m |
| DRAFT EXTREME |
1,30 m |
| |
|
| |
|
| TANK CAPACITIES |
| FUEL OIL |
2,33 m3 |
| FRESH WATER |
0,15 m3 |
| |
|
| |
|
| PERFORMANCES |
| SPEED |
25+ knots |
| COMPLEMENT |
2 crew + 6 pilots |
| |
|
| |
|
| PROPULSION SYSTEM |
| MAIN ENGINES |
VOLVO PENTA D13 MH |
| TOTAL POWER |
2x 404 kW @ 1900 rpm |
| PROPELLER |
800 mm DIA, Cu3 |
| GEARBOX |
ZF 360 A |
| REDUCTION RATIO |
1.964:1 |
| |
|
| |
|
| DECK EQUIPMENT |
| ANCHORS & CHAIN |
1 x 16 kg Short link chain 10mm Gr 3 |
| FENDERS |
Elastomer coated foam core cylindrical fendering around the hull |
| |
|
| |
|
| AUXILIARY EQUIPMENT |
| GENERATOR SET |
6ekW @ 1500 rpm 50hz |
| MACHINERY COOLING SYSTEM |
Mounted on engine |
| AIR-CONDITIONING |
Split Air-conditioner |
| |
|
| |
|
| NAUTICAL AND COMMUNICATION EQUIPMENT |
| GMDSS A1 AREA |
| RADAR |
JRC: JMA-3334 |
| CHART PLOTTER |
PCP 207 |
| AIS CLASS B |
I-MARINE |
| VHF |
JRC: JHS-770S |
| MAGNETIC COMPASS |
TYPE 21 |
| ECHO SOUNDER |
SAMYUNG: SES-2000 |
| |
|
| |
|
| OPTIONAL EQUIPMENT |
| INTERCEPTOR TRIM TAB SYSTEM |
