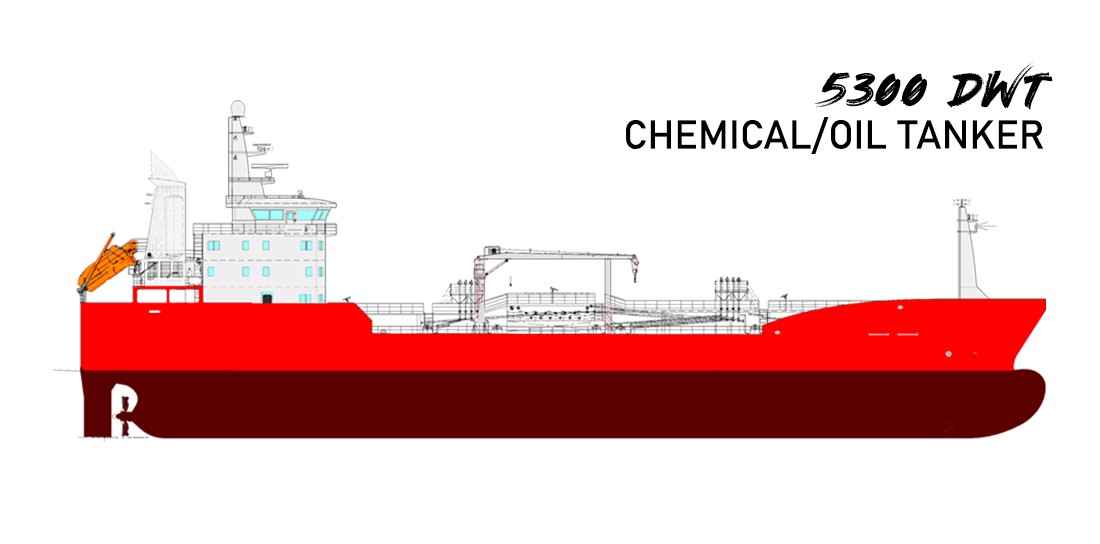

5.300 DWT STST
|
GENERAL |
|
|
YARD NAME |
Ereğli Shipyard |
|
BASIC FUNCTIONS |
Chemical / Oil Tanker |
|
CLASSIFICATION |
BUREAU VERITAS ✠ HULL ✠ MACHINERY, OIL&CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION,*AUT-UMS, CLEAN SHIP, MON SHAFT, ICE CLASS 1A, IG, MANOVR, AVM-APS, IMO II, VCS, INWATERSURVEY. |
|
MAIN PARTICULARS (Approx.) |
|
|
LENGTH OVERALL |
99,40 m |
|
LENGTH BETW. PERP. |
93,70 m |
|
BREATH, MLD |
17,2 m |
|
DEPTH, MLD |
10,50 m |
|
DRAUGHT, DESIGN |
6,90 m |
|
DEADWEIGHT |
5.300 DWT |
|
SERVICE SPEED |
14,1 knots |
|
COMPLEMENT |
17 |
|
MACHINERY |
|
|
MAIN ENGINE |
MAN 8L32/40 |
|
POWER / RPM |
4000 kW at 750 rpm |
|
SPECIFIC FUEL CONSUMPTION |
abt.42700kj/kg |
|
CONTROLLABLE PITCH PROPELLER |
abt.134rpm |
|
BOW THRUSTER (KW) |
390 kW |
|
POWER SUPPLY DIESEL GENERATORS |
3 x 585 kW |
|
EMERGENCY DIESEL GENERATOR |
130 kW |
|
SHAFT ALTERNATOR |
abt. 1420 kVA |
|
VOLTAGE & FREQUENCY OF VESSEL |
440V & 60Hz |
|
CARGO PUMPING SYSTEM |
12 x abt. 150 m3 /h, Electrically Driven Deepwell Pump CARGO |
|
TANK CAPACITIES (Approx.) |
|
|
CARGO TANK 1 P & STB |
1063,7cbm |
|
CARGO TANK 2 P & STB |
1688cbm |
|
CARGO TANK 3 P & STB |
298,7cbm |
|
CARGO TANK 4 P & STB |
1053,3cbm |
|
CARGO TANK 5 P & STB |
1124,2cbm |
|
CARGO TANK 6 P & STB |
1140,7cbm |
|
Total |
6368,6cbm |
|
MAX. CARGO DENSITY: |
1,86t/cbm |
|
OTHER TANK CAPACITIES (Approx.) |
|
|
HEAVY FUEL OIL |
166,9cbm |
|
MARINE DIESEL OIL |
60,4cbm |
|
LOW SULPHUR OIL |
217,4cbm |
|
LUBRICATION OIL |
35,6cbm |
|
FRESH WATER |
61,0cbm |
|
TECHNICAL FRESH WATER |
123,0cbm |
|
BILGE WATER HOLDING |
30,0cbm |
|
SLUDGE OIL TANK |
22,1cbm |
|
GREY WATER TANK |
20,9cbm |
|
WATER BALLAST |
2209,8cbm |
