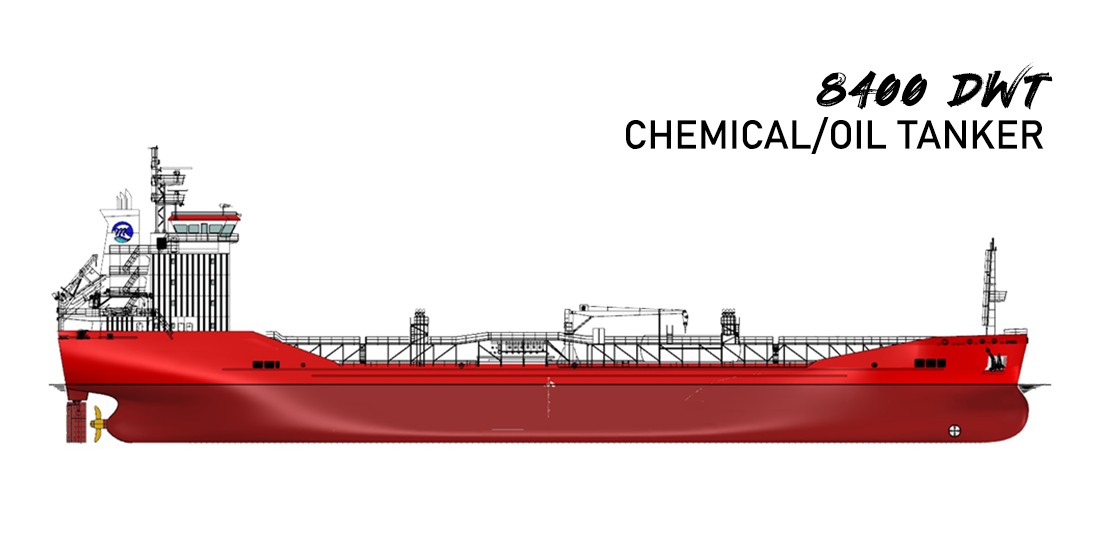

8.400 DWT (Shorter Version)
|
GENERAL |
|
|
BASIC FUNCTIONS |
Chemical / Oil Tanker |
|
CLASSIFICATION |
BUREAU VERITAS ✠ HULL ✠ MACHINERY, OIL&CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION,*AUT-UMS, CLEAN SHIP, MON SHAFT, ICE CLASS 1A, MANOVR, AVM-APS, IMO II, VCS, INWATERSURVEY. |
|
MAIN PARTICULARS (Approx.) |
|
|
LENGTH OVERALL |
119,900 m |
|
LENGTH BETW. PERP. |
116,267 m |
|
BREATH, MLD |
17,2 m |
|
DEPTH, MLD |
9,20 m |
|
DRAUGHT, DESIGN |
6,70 m |
|
DEADWEIGHT |
8.400 DWT |
|
SERVICE SPEED |
14,0 knots |
|
COMPLEMENT |
17+1 |
|
MACHINERY |
|
|
MAIN ENGINE |
MAK/8M32C |
|
POWER / RPM |
4000 kW at 600 rpm |
|
SPECIFIC FUEL CONSUMPTION |
abt.177g/kWh at 85% output |
|
CONTROLLABLE PITCH PROPELLER |
abt.139 rpm |
|
BOW THRUSTER (KW) |
430 kW |
|
POWER SUPPLY DIESEL GENERATORS |
585kW at 1800 rpm |
|
EMERGENCY DIESEL GENERATOR |
150kW at 1800 rpm |
|
SHAFT ALTERNATOR |
1400 kW |
|
VOLTAGE & FREQUENCY OF VESSEL |
440V & 60Hz |
|
CARGO PUMPING SYSTEM |
Hydraulic Deepwell Cargo Pump |
|
TANK CAPACITIES (Approx.) |
|
|
CARGO TANK 1 P & STB |
1708,88cbm |
|
CARGO TANK 2 P & STB |
1565,49cbm |
|
CARGO TANK 3 P & STB |
1572,026cbm |
|
CARGO TANK 4 P & STB |
1654,76cbm |
|
CARGO TANK 5 P & STB |
1323,81cbm |
|
CARGO TANK 6 P & STB |
1347,838cbm |
| SLOP TANK P & STB | 187,761 cbm |
|
Total |
9360,570 cbm |
|
OTHER TANK CAPACITIES (Approx.) |
|
|
HEAVY FUEL OIL |
353,588cbm |
|
MARINE DIESEL OIL |
63,072cbm |
|
LUBRICATING OIL |
50,830cbm |
|
FRESH WATER. |
345,118cbm |
|
BALLASTING / HEELING WATER |
3824,453cbm |
|
CRUISING RANGE |
appr. 6.500 nautical miles |
