| GENERAL | |

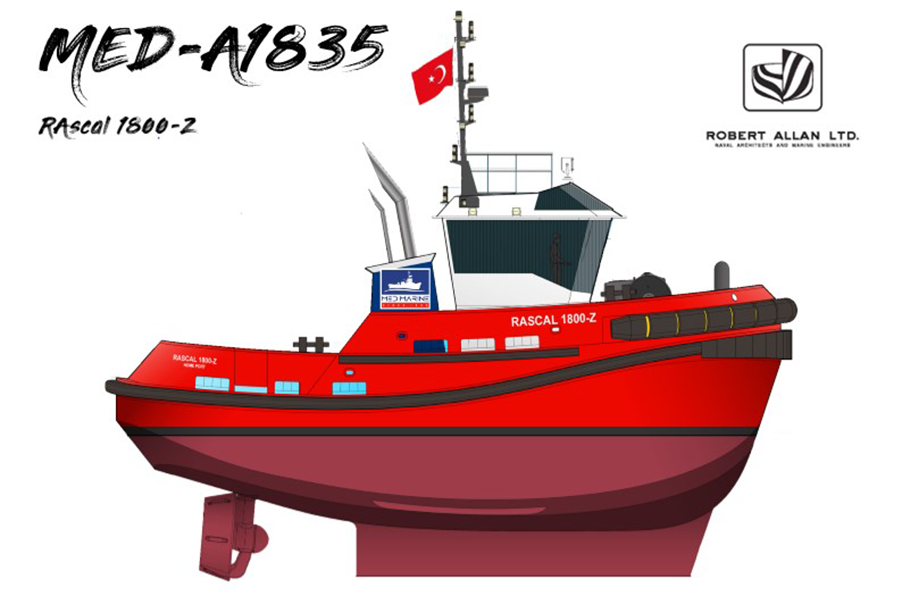

| DESIGN | Robert Allan Ltd. RAscal 1800 |
| BASIC FUNCTIONS | Towing, pushing, mooring, fire-fighting |
| CLASSIFICATION | RINA C ✠HULL, ✠MACH, TUG, FIREFIGHTING SHIP E, WITH WATER SPRAY, UNRESTRICTED NAVIGATION, ✠ AUT-UMS, INWATERSURVEY |
| DIMENSIONS | |
| LENGTH O.A. | 18.00 m |
| BEAM | 9.60 m |
| DEPTH | 3.30 m |
| DRAFT BASELINE | 2.30 m |
| DRAFT EXTREME | 3.50 m |
| GROSS TONNAGE | < 200 |
| TANK CAPACITIES | |
| FUEL OIL | 24,40 m3 |
| FRESH WATER | 4,20 m3 |
| SEWAGE | 4,40 m3 |
| OILY WATER | 2,30 m3 |
| LUBRICATION OIL | 0.60 m3 |
| FOAM | 1.30 m3 |
| PERFORMANCES | |
| BOLLARD PULL | 30 / 35 tons |
| SPEED | 12 knots (approx.) |
| PROPULSION SYSTEM | |
| MAIN ENGINES | CATERPILLAR C32 |
| TOTAL POWER | 2 x 895 / 970 kW @ 1800 rpm |
| EMISSION STANDARD | IMO Tier II |
| AZIMUTHING STERN DRIVE | SCHOTTEL SRP 260 FP |
| PROPELLERS | 1750 / 1800 mm diameters |
| SHAFTING | Steel/Carbon Shaft |
| ACCOMMODATION | |
| Accommodation for 4 people, high-quality and great comfort. Accommodation is climate-controlled and includes two double crew cabins. | |
| DECK EQUIPMENT | |
| FORE TOWING WINCH |
DATA HIDROLIK OR EQUIVALENT 200kN electric frequency controlled towing winch one towing drum. Force and speed ranges : 200 kN at 0-9 m/min65 kN at 0-27 m/min Brake holding force in 1st layer : 750 / 875 kN |
| TOWING HOOK | DATA Quick Release Disc Type Towing Hook Type: DTH 45-90 |
| CAPSTAN | Data Hidrolik electric capstan SWL 30kN |
| RESCUE BOAT CRANE | Manual Operated Crane SWL: 0.5 tonnes |
| RESCUE BOAT | REDSEA RS-A-380 foldable rescue boat |
| ANCHORS & CHAIN | 1 x 180 kg (HHP) short link chain 19mm Gr2 |
| ANCHOR CAPSTAN | Data Hidrolik electric anchor capstan, |
| FENDERS | Rubber, cylinder and W type bow fender, D type around the hull |
| AUXILIARY EQUIPMENT | |
| GENERATOR SET | 2 x CATERPILLAR C4.4 86ekW @ 1500 rpm 50hz |
| FRESH WATER SYSTEM | Hydrophore and UV filter combined heater |
| MACHINERY COOLING SYSTEM | Plate cooler type |
| AIR-CONDITIONING | HEINEN HOPMAN: Secondary AC unit in wheelhouse Cold climate package Hot climate package |
| FIFI E SYSTEM | 1 x M/E driven fi-fi pump Capacity; 1314 m3/hour 1 x Monitor : Foam/water monitor with remote operated, electric controls |
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| GMDSS A2 AREA | |
| SEARCHLIGHT | 2 x 230 V, 2000 W (Remote Controlled) |
| RADAR | JRC: JMR-541006XA BB |
| GPS | JRC: JLR-7500 |
| AIS CLASS A | JHS-183 |
| AIS CLASS B | I-MARINE |
| GPS COMPASS | JRC: JLR-21 |
| MAGNETIC COMPASS | REFLECTA 3 |
| NAVTEX | JRC: NCR 333 |
| EPIRB | JOTRON 83310 |
| SART | JOTRON 85037 |
| AUTOPILOT | NAVITRON NT-888G |
| BNWAS | NAVITRON NT991 |
| INTERCOM | PHONTECH: CIS-3100 |
| VHF | ICOM: IC M323 |
| INMARSAT-C & LRIT&SSAS | JRC:JUE-87 |
| ECHO SOUNDER | JRC: 7050 |
