| GENERAL | |

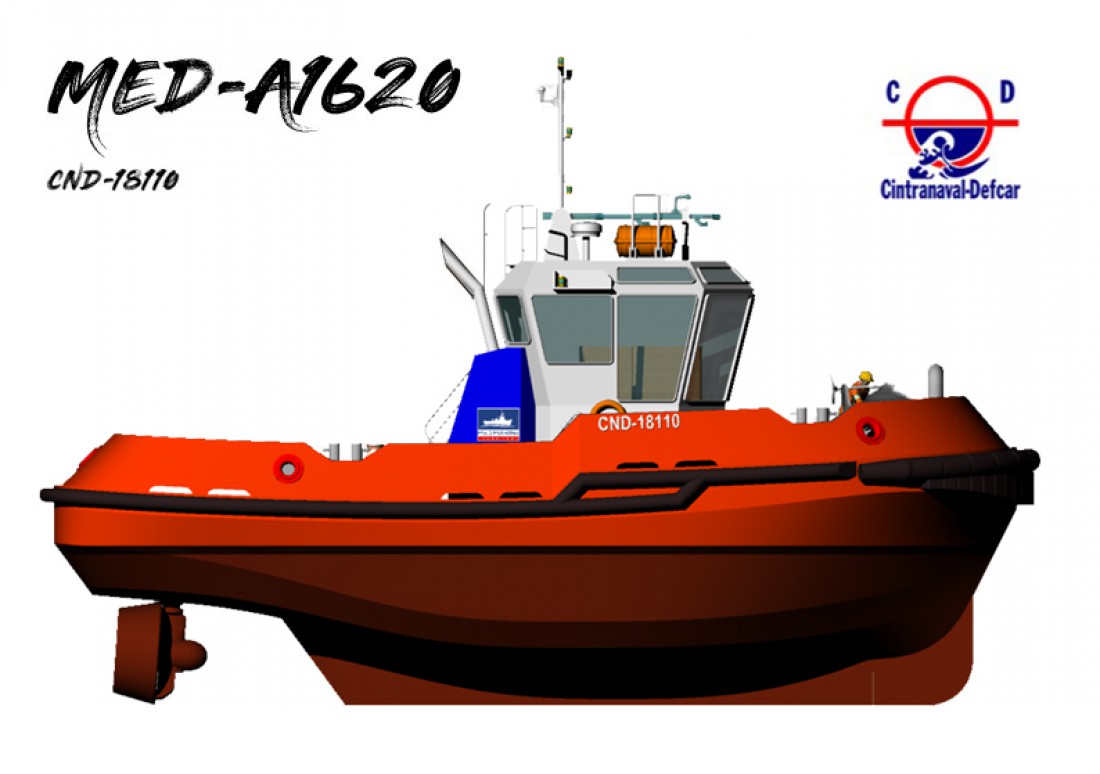

| DESIGN | Cintranaval Design - CND-18110 |
| BASIC FUNCTIONS | Towing, pushing, mooring |
| CLASS | RINA C+ HULL • MACHINERY, TUG, UNRESTRICTED NAVIGATION, INWATERSURVEY |
| DIMENSIONS | |
| LENGTH OVERALL | 16,50 m |
| BEAM OVERALL | 6,00 m |
| DEPTH | 2,70 m |
| DRAFT BASELINE | 1,80 m |
| DRAFT EXTREME | 2,70 m |
| GROSS TONNAGE | < 200 |
| TANK CAPACITIES | |
| FUEL OIL | 14,19 m3 |
| FRESH WATER | 3,45 m3 |
| SEWAGE | 0,50 m3 |
| LUBRICATION OIL | 0,54 m3 |
| PERFORMANCES | |
| BOLLARD PULL | 20 TONS |
| SPEED | 12 knots (approx.) |
| MACHINERY & PROPULSION SYSTEM | |
| MAIN ENGINES | VOLVO PENTA D16-750 2 x 551 kW @ 1800 rpm CATERPILLAR C18 2 x 533 kW @ 1800 rpm |
| EMISSION STANDARD | IMO Tier II |
| AZIMUTHING STERN DRIVE | Rolls Royce US105P6 Schottel SRP 190 FP |
| PROPELLERS | 1300 mm / 1400mm diameters |
| SHAFTING | Steel/Carbon Shaft |
| DECK EQUIPMENT | |
| TOWING HOOK | DATA Disc Type Towing Hook Type : DTH 30-60 |
| CAPSTAN | DATA Capstan SWL:5t |
| ANCHORS & CHAIN | 1 x 150 kg (HHP) Short link chain 14mm Gr 2 |
| ANCHOR CAPSTAN | One (1) piece DATA HIDROLIK hydraulic windlass |
| FENDERS | Rubber, cylinder and W type bow fender, D type |
| AUXILIARY EQUIPMENT | |
| GENERATOR SET | 2 x VOLVO PENTA 62ekW @ 1500 rpm 50hz |
| FRESH WATER SYSTEM | Hydrophore and UV filter combined heater |
| MACHINERY COOLING SYSTEM | Plate cooler type |
| AIR-CONDITIONING | Secondary AC unit in wheelhouse Cold climate package Hot climate package |
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| GMDSS A2 AREA | |
| SEARCHLIGHT | 2 x 230 V, 2000 W (Remote Controlled) |
| RADAR | JRC: JMR-541006XA BB |
| GPS | JRC: JLR-7500 |
| AIS CLASS A | JHS-183 |
| AIS CLASS B | I-MARINE |
| GPS COMPASS | JRC: JLR-21 |
| MAGNETIC COMPASS | REFLECTA 3 |
| NAVTEX | JRC: NCR 333 |
| EPIRB | JOTRON 83310 |
| SART | JOTRON 85037 |
| AUTOPILOT | NAVITRON NT-888G |
| BNWAS | NAVITRON NT991 |
| INTERCOM | PHONTECH: CIS-3100 |
| VHF | ICOM: IC M323 |
| INMARSAT-C & LRIT&SSAS | JRC:JUE-87 |
| ECHO SOUNDER | JRC: 7050 |
| ACCOMMODATION | |
| Accommodation for 4 people, high-quality and great comfort. Accommodation is climate-controlled and includes two double crew cabins. | |
| OPTIONAL EQUPMENT | |
| AFT WINCH | Single drum hydraulic towing winch |
| DECK CRANE | 250kg @ 5m |
