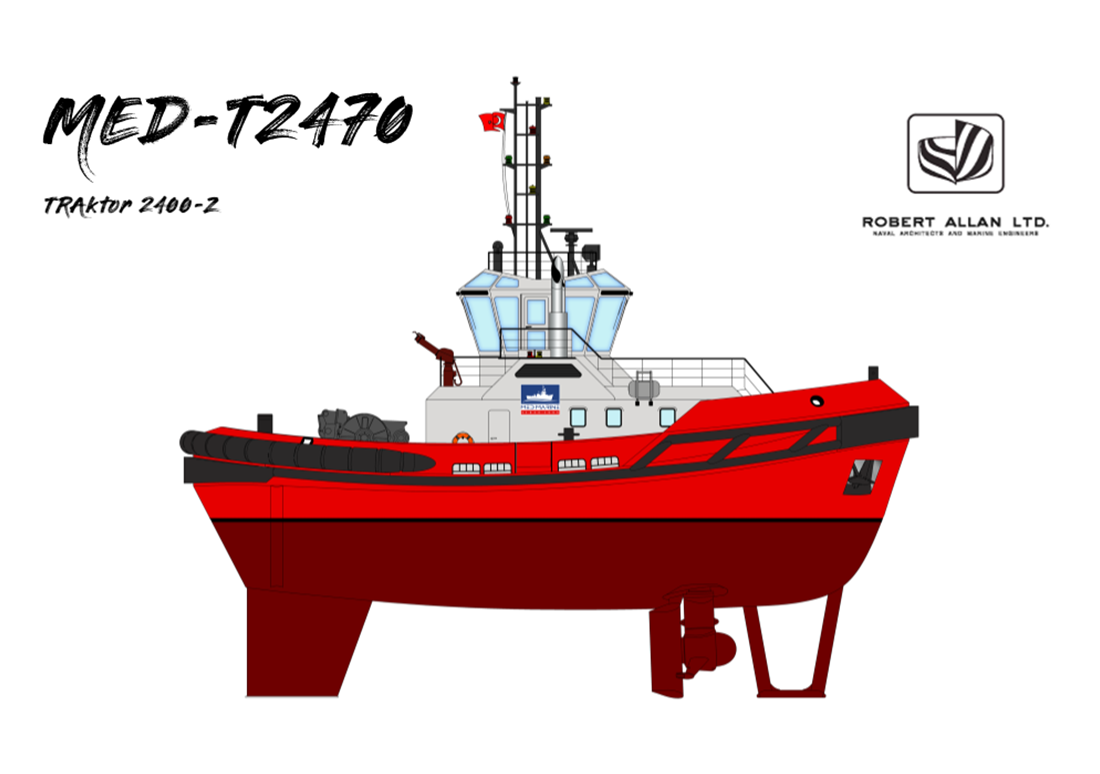

MED-T2470

TRACTOR 2470 TUG
ROBERT ALLAN DESIGN
TRAktor 2400-Z


GENERAL
DESIGN Robert Allan Ltd. TRAktor 2400-Z
BASIC FUNCTIONS Towing, pushing, mooring, fire-fighting
CLASSIFICATION  RINA C  ✠HULL, ✠MACH, ✠ AUT-UMS, TUG, FIREFIGHTING  SHIP E WITH WATER SPRAY,  UNRESTRICTED NAVIGATION, MLC DESIGN, INWATERSURVEY

DIMENSIONS
LENGTH O.A. 24,00 m
BEAM 12.00 m
DEPTH  4,55 m
DRAFT BASELINE  5,8m
DRAFT EXTREME  6,00m
GROSS TONNAGE < 400

TANK CAPACITIES
FUEL OIL 70,00 m3
FRESH WATER 12,00m
FOAM 4 ,00m3

PERFORMANCES
BOLLARD PULL 70 tons
SPEED 12 knots (approx

PROPULSION  SYSTEM
MAIN ENGINES CATERPILLAR 3516C
TOTAL POWER 2 x 2100 kW @ 1600 rpm
EMISSION STANDARD IMO Tier II
AZIMUTHING STERN DRIVE SCHOTTEL SRP 460 FP /  KONGSBERG US255 FP
PROPELLERS 2600 mm diameters
Built-in, Hydraulically Operated ON/OFF Clutch
(Optional HD Slipping Clutch – for Fi-Fi 1)
SHAFTING Carbon Fiber Shaft

ACCOMMODATION
Accommodation for 6 people MLC-compliant high-quality and great comfort accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, and two double crew cabins.

DECK EQUIPMENT
AFT TOWING WINCH Two (2) THR MARINE single drum, electrical driven  winches with hydraulic operated band brake and  hydraulic operated friction clutch
Force and speed ranges : 250 kN at 9 m/min
                                          80 kN at 28 m/min
Brake holding force in 1st layer : 1750 kN
ANCHORS & CHAIN Class Requirements
FENDERS Rubber, Cylinder, W and D type fendering

AUXILIARY  EQUIPMENT
GENERATOR SET 2 x C4.4 86 ekW 1500 rpm 50hz
FRESH WATER SYSTEM Hydrophore and UV filter combined heater
MACHINERY COOLING SYSTEM Box cooler type
AIR-CONDITIONING HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Cold climate package
Hot climate package
FIFI  E SYSTEM  1 x M/E driven fi-fi pump
 FIFI-1  (OPTIONAL) Capacity ; 1350 m3/hr.
1 x Monitor :  Foam/water monitor with remote  operated, electric controls

NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS A3 AREA
SEARCHLIGHT 2 x 230 V, 2000 W
RADAR FURUNO FAR-1518-BB
GPS NAVIGATOR FURUNO GP-170
AIS CLAS A FURUNO FA-170
SATELLITE COMPASS FURUNO SC-70
MAGNETIC COMPASS REFLECTA A/3
NAVTEX FURUNO NX-700B
EPIRB JOTRON TRON 60S
SART JOTRON TRON SART 20
AUTOPILOT RAYTHEON ANSCHUTZ NP 60
BNWAS FURUNO BR-500
INTERCOM PHONTECH CIS-3100
VHF JOTRON TRON TR30
INMARSAT-C FELCOM-19/SSAS
ANOMOMETER AIRMAR 220WX
SPEED LOG FURUNO DS-80
ECHO SOUNDER FURUNO: FE-800

OPTIONAL
DECK CRANE PALFINGER PK18500(M)B SWL 1t@10m
RESCUE BOAT CRANE PALFINGER SCH 12-3.5 R SWL 12t@3.5m
RESCUE BOAT  RIBO DSB 5.1 SR/SOLAS
CAPSTAN DATA  HIDROLIK  SWL:5t
TOWING HOOK One (1) or Two (2) on aft deck
DATA HIDROLIK quick release disc type
Type DTH 70-130 P
