| GENERAL | |

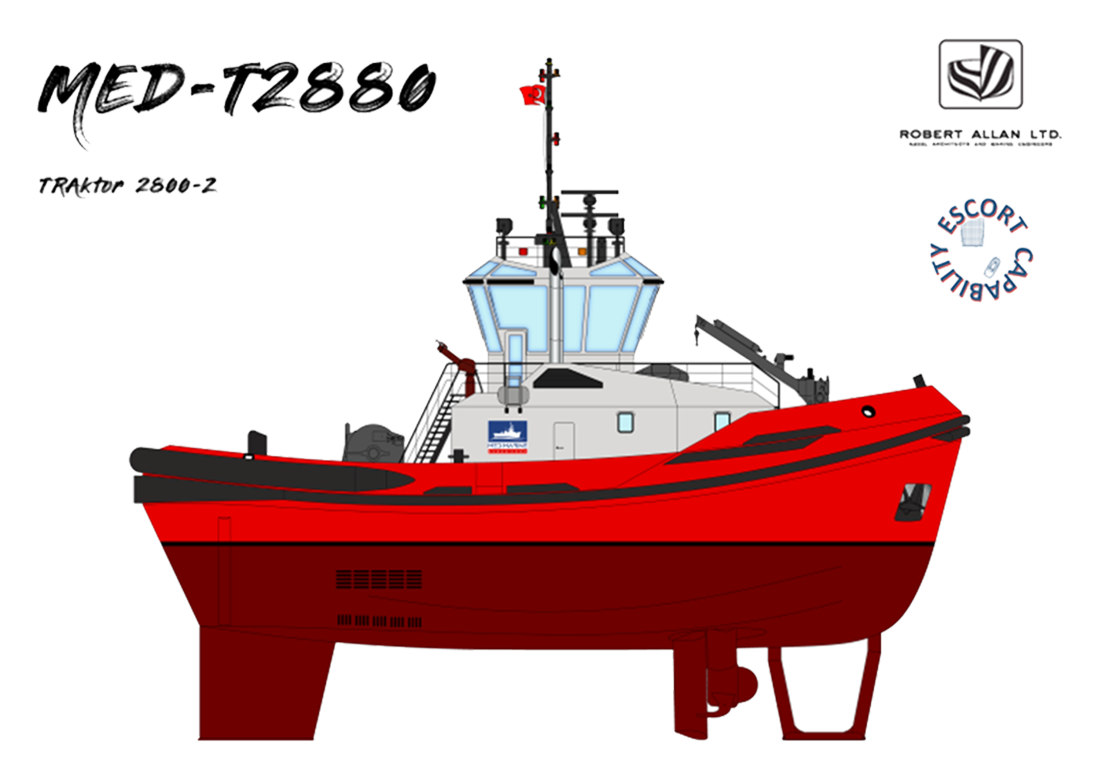

| DESIGN | Robert Allan Ltd. TRAktor 2800-Z |
| BASIC FUNCTIONS | Towing, pushing, mooring, fire-fighting |
| CLASSIFICATION | RINA C ✠HULL, ✠MACH, ✠ AUT-UMS, TUG, FIREFIGHTING SHIP 1 WITH WATER SPRAY, UNRESTRICTED NAVIGATION, MLC DESIGN, INWATERSURVEY |
| DIMENSIONS | |
| LENGTH O.A. | 28,00 m |
| BEAM | 12.00 m |
| DEPTH | 4,90m |
| DRAFT BASELINE | 6,00 m |
| DRAFT EXTREME | 6,25 m |
| GROSS TONNAGE | < 500 |
| TANK CAPACITIES | |
| FUEL OIL | 140,00 m3 |
| FRESH WATER | 15,00 m3 |
| FOAM | 6,0m3 |
| PERFORMANCES | |
| BOLLARD PULL | 80 tons |
| SPEED | 12,5 knots (approx.) |
| PROPULSION SYSTEM | |
| MAIN ENGINES | CATERPILLAR 3516C |
| TOTAL POWER | 2 x 2240 kW @ 1600 rpm |
| EMISSION STANDARD | IMO Tier II |
| AZIMUTHING STERN DRIVE | SCHOTTEL SRP 460 FP / KONGSBERG US255 FP |
| PROPELLERS | 2600 mm diameters Built-in, Hydraulically Operated ON/OFF Clutch (Optional HD Slipping Clutch – for Fi-Fi 1) |
| SHAFTING | Carbon Fiber Shaft |
| ACCOMMODATION | |
| Accommodation for 8 people MLC-compliant high-quality and great comfort accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, and three double crew cabins. | |
| DECK EQUIPMENT | |
| AFT TOWING WINCH |
IBERCISA OR EQUIVALENT electric driven anchor combined escort towing winch with two chain wheels, two towing drums and two warping heads. Force and speed ranges : 700 kN at 0-5 m/min200 kN at 0-15 m/min Brake holding force in 1st layer : 2000 kN |
| ANCHORS & CHAIN | Class Requirements |
| FENDERS | Rubber, Cylinder, W and D type fendering |
| AUXILIARY EQUIPMENT | |
| GENERATOR SET | 2 x CATERPILLAR C4.4 99kW@1500rpm 50hz |
| FRESH WATER SYSTEM | Hydrophore and UV filter combined heater |
| MACHINERY COOLING SYSTEM | Box cooler type |
| AIR-CONDITIONING | HEINEN HOPMAN: Secondary AC unit in wheelhouse Cold climate package Hot climate package |
| FIFI 1 SYSTEM | 2 x M/E driven Fi-Fi pump Capacity (each); 1350 m3/hr. 2 x Monitor : Foam/water monitor with remote operated, electric controls |
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| GMDSS A3 AREA | |
| SEARCHLIGHT | 2 x 230 V, 2000 W |
| RADAR | FURUNO FAR-1518-BB |
| GPS NAVIGATOR | FURUNO GP-170 |
| AIS CLAS A | FURUNO FA-170 |
| SATELLITE COMPASS | FURUNO SC-70 |
| MAGNETIC COMPASS | REFLECTA A/3 |
| NAVTEX | FURUNO NX-700B |
| EPIRB | JOTRON TRON 60S |
| SART | JOTRON TRON SART 20 |
| AUTOPILOT | RAYTHEON ANSCHUTZ NP 60 |
| BNWAS | FURUNO BR-500 |
| INTERCOM | PHONTECH CIS-3100 |
| VHF | JOTRON TRON TR30 |
| INMARSAT-C | FELCOM-19/SSAS |
| ANOMOMETER | AIRMAR 220WX |
| SPEED LOG | FURUNO DS-80 |
| ECHO SOUNDER | FURUNO: FE-800 |
| OPTIONAL | |
| DECK CRANE | PALFINGER PK18500(M)B SWL 1t@10m |
| RESCUE BOAT CRANE | PALFINGER SCH 12-3.5 R SWL 12t@3.5m |
| RESCUE BOAT | RIBO DSB 5.1 SR/SOLAS |
| CAPSTAN | DATA HIDROLIK SWL:5t |
| TOWING HOOK | One (1) or Two (2) on aft deck DATA HIDROLIK quick release disc type Type DTH 90-135 P |
