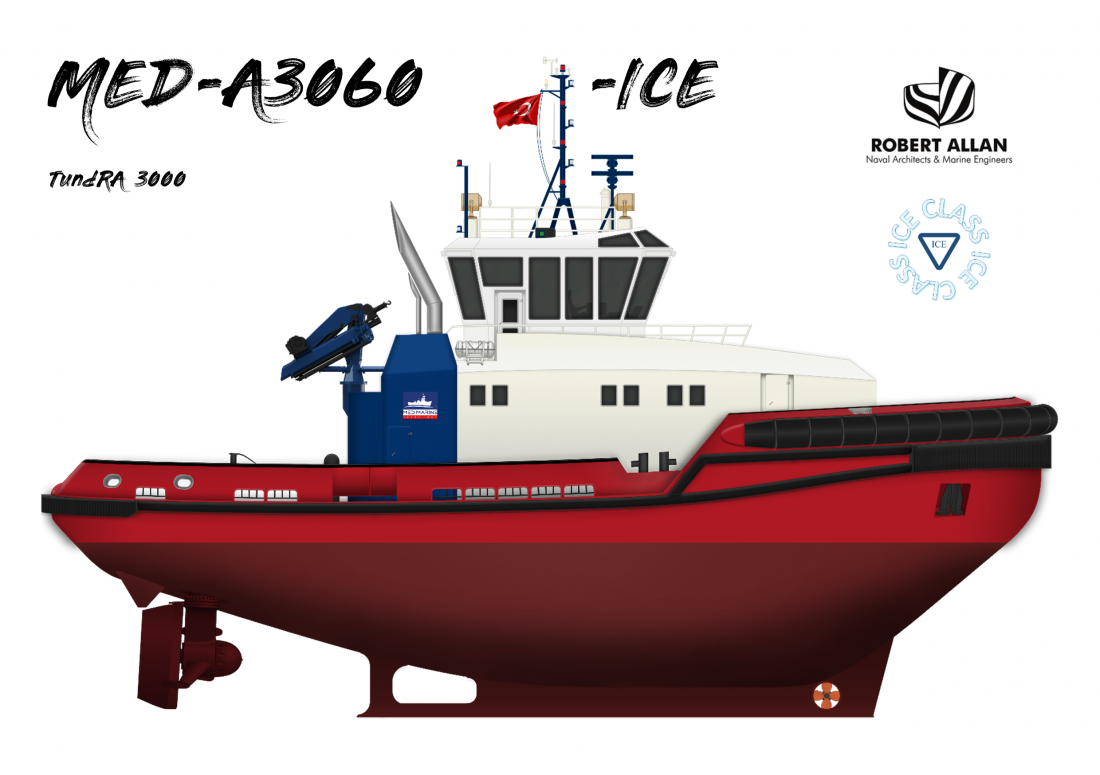

MED-A3060-ICE

ASD 3060 ICE TUG
ROBERT ALLAN DESIGN
TundRA 3000


GENERAL
DESIGN Robert Allan Ltd. TundRA 3000
BASIC FUNCTIONS Towing, pushing, escorting, mooring
CLASSIFICATION  ABS   ✠A1, ESCORT  VESSEL,✠AMS, ✠ACCU  UNRESTRICTED NAVIGATION,   UWILD, Ice Class I A

DIMENSIONS
LENGTH O.A. 30,00 m
BEAM 12.60 m
DEPTH  5,70 m
DRAFT BASELINE  4,50 m
DRAFT EXTREME  5,60 m
GROSS TONNAGE < 500

TANK CAPACITIES
FUEL OIL 117.70 m3
FRESH WATER 26,60 m3
SEWAGE WATER 9,40 m3
GREY WATER  9,40 m3
OILY WATER 1,90 m3
LUBRICATION OIL 2,30 m3
DIESEL EXHAUST FLUID 8,00 m3

PERFORMANCES
BOLLARD PULL 60 tons
SPEED 12 knots (approx.)

PROPULSION  SYSTEM
MAIN ENGINES MAN 12V175D-MM 2 x 2040 kW @ 1800 rpm – Tier II/III
CAT 3512 C 2 x 1902 kW @ 1800 rpm – Tier II
CAT 3512 E 2 x 1901 kW @ 1800 rpm – Tier III
AZIMUTHING STERN DRIVE KONGSBERG ICE 255S P30 CP
PROPELLERS 2400 mm diameters
SHAFTING Carbon Fiber Shaft

ACCOMMODATION
Accommodation for 6 people, high-quality and great comfort accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, two single crew cabins and one double crew cabin with central heating.

DECK EQUIPMENT
FORE TOWING WINCH KARMOY Heavy duty escort towing winch
 Force and speed ranges : 108 t at 14 m/min
                                            4,2 t at 276 m/min
TUGGER WINCHES 2 x DATA HIDROLIK tugger winches with one drum
TOWING PIN DATA HIDROLIK Type DTP 10 H SWL 60t @ 15o
 Opening / closing time : 8 / 5 sec
ANCHORS & CHAIN Class Requirements
FENDERS Rubber, Cylinder, W and D type fendering around the hull

AUXILIARY  EQUIPMENT
GENERATOR SET 2 x VOLVO 130 ekW 1500rpm 50Hz
FRESH WATER SYSTEM Hydrophore and UV filter combined heater
MACHINERY COOLING SYSTEM Box cooler type
AIR-CONDITIONING HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Cold climate package
Hot climate package

NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS A3 AREA
SEARCHLIGHT 2 x 230 V, 2000 W (Remote Controlled)
RADAR FURUNO FAR-1518-BB
GPS NAVIGATOR FURUNO GP-170
AIS CLAS A FURUNO FA-170
SATELLITE COMPASS FURUNO SC-70
MAGNETIC COMPASS REFLECTA A/3
NAVTEX FURUNO NX-700B
EPIRB JOTRON TRON 60S
SART JOTRON TRON SART 20
AUTOPILOT RAYTHEON ANSCHUTZ NP 60
BNWAS FURUNO BR-500
INTERCOM PHONTECH CIS-3100
VHF JOTRON TRON TR30
INMARSAT-C FELCOM-19/SSAS
SPEED LOG FURUNO DS-80
ECHO SOUNDER FURUNO: FE-800

OPTIONAL
BOW THRUSTER SCHOTTEL
DECK CRANE PALFINGER PK18500(M)B SWL 1t@10m
RESCUE BOAT CRANE PALFINGER SCH 12-3.5 R SWL 12t@3.5m
RESCUE BOAT  RIBO DSB 5.1 SR/SOLAS
REEL WINDER DATA HIDROLIK DRW 4000 EP-L
