MED-A3280-SD

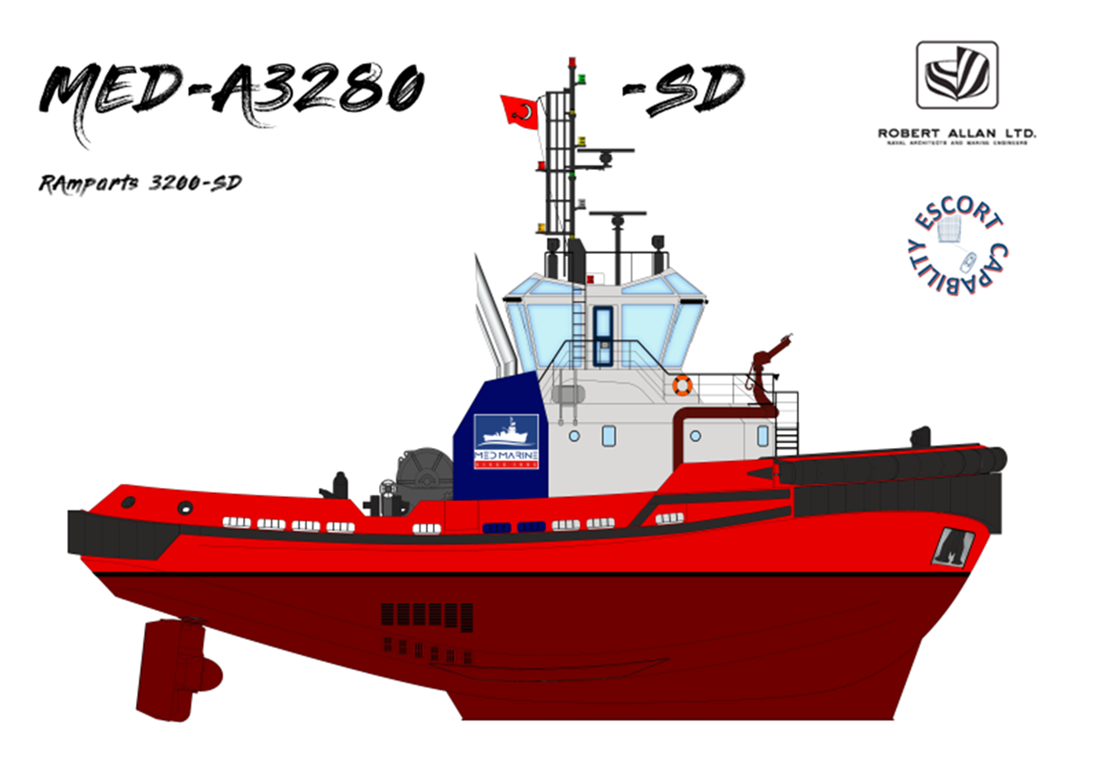

ASD 3280 SD TUG
ROBERT ALLAN DESIGN
RAmparts 3200-SD


GENERAL
DESIGN Robert Allan Ltd. RAmparts 3200 SD
BASIC FUNCTIONS Escorting, towing, pushing, mooring, fire-fighting
CLASSIFICATION  RINA C  ✠HULL, ✠MACH, ESCORT TUG,
 FIREFIGHTING  SHIP 1, WITH WATER SPRAY
 UNRESTRICTED NAVIGATION
  ✠AUT-UMS, MLC DESIGN, INWATERSURVEY
OPTIONAL OIL RECOVERY SHIP-FLASH POINT > 60OC
SALVAGE TUG, GREENSTAR3

DIMENSIONS
LENGTH O.A. 31,50 m
BEAM 12.60 m
DEPTH  5,40 m
DRAFT BASELINE  4,19 m
DRAFT EXTREME  5,00 m
GROSS TONNAGE < 500

TANK CAPACITIES
FUEL OIL 185,80 m3
FRESH WATER 35,00 m3
SEWAGE WATER 10,90 m3
OILY WATER 5,40 m3
LUBRICATION OIL 4,70 m3
FOAM 12,40 m3

PERFORMANCES
BOLLARD PULL 75 tons
SPEED 12.5 knots

PROPULSION  SYSTEM
MAIN ENGINES CATERPILLAR 3516C
TOTAL POWER 2 x 2350 kW @ 1800 rpm
EMISSION STANDARD IMO Tier II
AZIMUTHING STERN DRIVE SCHOTTEL SRP 1515 CP
PROPELLERS 2600 mm diameters
SHAFTING Carbon Fiber Shaft

ACCOMMODATION
Accommodation for 8/10 people, MLC-compliant high-quality and great comfort. Accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, and three / four double crew cabins.

DECK EQUIPMENT
FORE TOWING WINCH THR MARINE (SEC) electric driven anchor  combined escort towing winch with two chain  wheels, two towing drums and two warping  heads
 Force and speed ranges : 700 kN at 0-5 m/min
                                                     200 kN at 0-15 m/min
AFT TOWING WINCH THR MARINE (SEC) electric frequency  controlled towing winch with one towing drum  and a warping head.
 Force and speed ranges : 700 kN at 0-5 m/min
                                                     200 kN at 0-15 m/min
Brake holding force in 1st layer : 1750 kN
TOWING HOOK Mampaey quick release disc type towing hook
 Type: DCX 70/100
TOWING PIN DATA HIDROLIK DTP 12 SH
CAPSTAN DATA HIDROLIK SWL:5t
ANCHORS & CHAIN 1 x 495 kg (HHP) short link chain 22mm Gr 3
FENDERS Rubber, cylinder and W type bow fender, D type at sides and W type aft fender
DECK CRANE Toimil T-10500M SWL10t.m reach 8 m or  equal
RESCUE BOAT & CRANE PALFINGER  RSQ 450 G / SWL: 12kN@3.5m

AUXILIARY  EQUIPMENT
GENERATOR SET 2 x CATERPILLAR C4.4 99kW@1500rpm 50hz
FRESH WATER SYSTEM Hydrophore and UV filter combined heater
MACHINERY COOLING SYSTEM SPERRE Plate cooler type
AIR-CONDITIONING HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Hot  & Cold climate package
FIFI 1  SYSTEM  2 x M/E driven fi-fi pump Capacity; 1314 m3/hour
2 x Monitor :  Foam/water monitor with remote  operated, electric controls

NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS A3 AREA
SEARCHLIGHT 2 x 230 V, 1000 W
RADAR JRC JMA-5212-6
GPS NAVIGATOR JRC JLR 7500
AIS CLASS-A JRC JHS-183
AIS CLASS-B I-MARINE
GPS COMPASS JRC: JLR 21
MAGNETIC COMPASS REFLECTA/1
NAVTEX JRC NCR-333
EPIRB / SART JOTRON TRON 60S / 85037
AUTOPILOT NAVITRON NT-921 MKII
BNWAS NAVITRON: NT991
INTERCOM PHONTECH: CIS-3100
VHF JRC: JHHS-770S
INMARSAT-C & SSAS JRC: JUE-87
ECHO SOUNDER JRC: JFE-380-22
SPEED LOG JRC: JLN-205 MK2
