MED-A42120

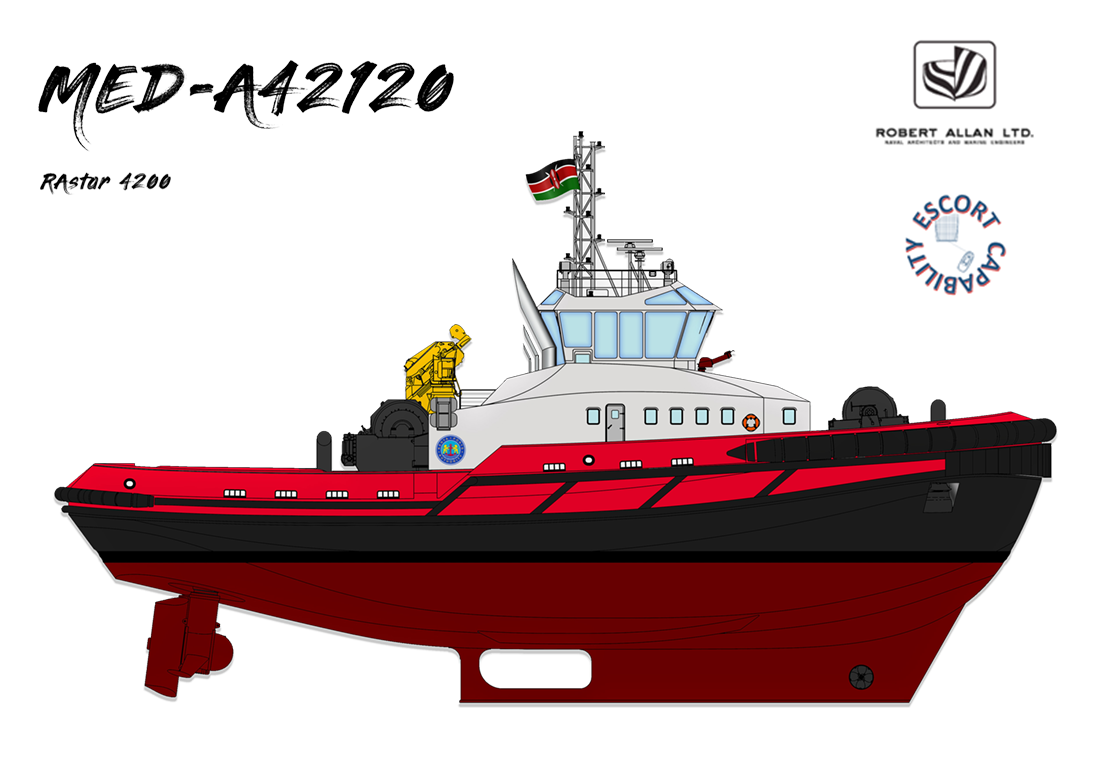

ASD 42120 TUG
ROBERT ALLAN DESIGN
RAstar 4200


GENERAL
DESIGN Robert Allan Ltd. Rastar 4200 - Salvage Tug
BASIC FUNCTIONS Salvage, harbour operations, ship-handling, towing, pushing, mooring, fire-fighting
CLASSIFICATION  RINA C  ✠TUG, AUT-UMS, FIRE FIGHTING SHIP 1, WATERSPRAYING, INWATERSURVEY
OPTIONAL NOTATION UNRESTRICTED NAVIGATION

DIMENSIONS
LENGTH O.A. 42,0 M
BEAM 16,0 M
DEPTH  6,4 M
DRAFT EXTREME  7,2 M
GROSS TONNAGE >500

TANK CAPACITIES
FUEL OIL 509 M3
FRESH WATER 96,4 M3

PERFORMANCES
BOLLARD PULL 120 TBP
SPEED 13 knots

PROPULSION  SYSTEM
MAIN ENGINES CATERPILLAR C280-12
TOTAL POWER 2X3700 bkW @ 1000 rpm
EMISSION STANDARD IMO Tier II
AZIMUTHING STERN DRIVE SCHOTTEL SRP 710 FP
PROPELLERS 3400 mm DIAMETERS
SHAFTING COMPOSITE SHAFT

ACCOMMODATION
Accommodation for 18 people, high-quality and great comfort. Accommodation is climate-controlled and includes 2 master’s cabins, 2 chief’s cabins and 7 crew cabins.

DECK EQUIPMENT
FORE TOWING WINCH MacGregor Hydraulic Anchor Windlass/ Towing Winch,
Model: MG-HAT/GDG-30-1230U02272x2
CL – CL Distance : 4,082 mm (TBC)
Gypsy Rated Pull : 3.9 T x 0~10.0 m/min
Gypsy Overload : 5.8 T
Gypsy Brake Holding : 23.6 T (static)
Brake : Manual operated band brake
Drum Brake holding : 230.0T (Static, Mid Layer)
                                          : 150.0T (Static, Top Layer)
Clutch : Hydraulic operated jaw clutch
Brake : Spring loaded, hydraulic release band brake
Power Required : 225 kW (approx.)
Control : Local & remote control
AFT TOWING WINCH MacGregor Hydraulic Towing Winch
(Model: MG-HTWW-1232D10064)
Drum Capacity : 1000m x 64mm dia. (SWR)
Stall Pull (1st layer) : 120.0 T
Drum Pull (1st layer) : 50.0 T x 0~15.0 m/min
                                            : 20.0 T x 0~32.0 m/min
Brake Holding Load : 230.0 T (Static, Mid layer)
                                         : 150.0 T (Static, Top layer)
Clutch : Hydraulic operated jaw clutch
Brake : Spring loaded, hydraulic released band brake
Power required : 225 kW (Approx.)
Control : Local & remote control
TOWING HOOK DATA - DTH 150-200H Hydraulic Towing Hook
CAPSTAN MacGregor Electric Vertical Capstan
(Model: MG-EVC-0845)
TOW PIN DATA DTP 10 H
DECK CRANE MARSIS PK41002(M)C
RESCUE BOAT CRANE GURDESAN GD.RRS 64 A
RESCUE BOAT  SURVITEC DSB SR 5.1
ANCHORS & CHAIN Anchor - 30 mm Grade 2
Chain - 2 x 855 kg HHP
ANCHOR CAPSTAN MacGregor Electric Vertical Capstan
Model: MG-EVC-0845
FENDERS Cylindrical, W type Fender, Hollow DD type fender (horizantal & longitudinal & diagonal)

AUXILIARY  EQUIPMENT
GENERATOR SET 3 x CAT C9.3 200 ekW@1500 rpm IMO Tier II
FRESH WATER SYSTEM Hydrophore and UV filter combined heater
MACHINERY COOLING SYSTEM Box cooler type
AIR-CONDITIONING HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Cold climate package
Hot climate package
FIFI 1  SYSTEM  2 x M/E driven fi-fi pump Capacity; 1350 m3/hour
2 x Monitor: Operation of water/foam monitors

NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS A3
SEARCHLIGHT 2 x 230V, 1000W
RADAR FAR-3210
GPS NAVIGATOR GP-170
AIS CLASS-A / CLASS-B  AIS CLASS A: FA-170
GPS COMPASS TOKYO-KEIKI TG-8000
MAGNETIC COMPASS SH-165A2-1
NAVTEX FURUNO NX-700B
EPIRB / SART JOTRON TRON SART 20 RADAR TRANSPONDER
JOTRON TRON 60S
AUTOPILOT SIMRAD AP70 Mk2
BNWAS FURUNO BR-500
INTERCOM PHONTECH: CIS-3102
VHF FURUNO FM-8900S
JOTRON TRON TR30
INMARSAT-C & SSAS FELCOM-18 / SSAS
ECHO SOUNDER / SPEED LOG  FURUNO FE-800
FURUNO DS-80
