| GENERAL | |

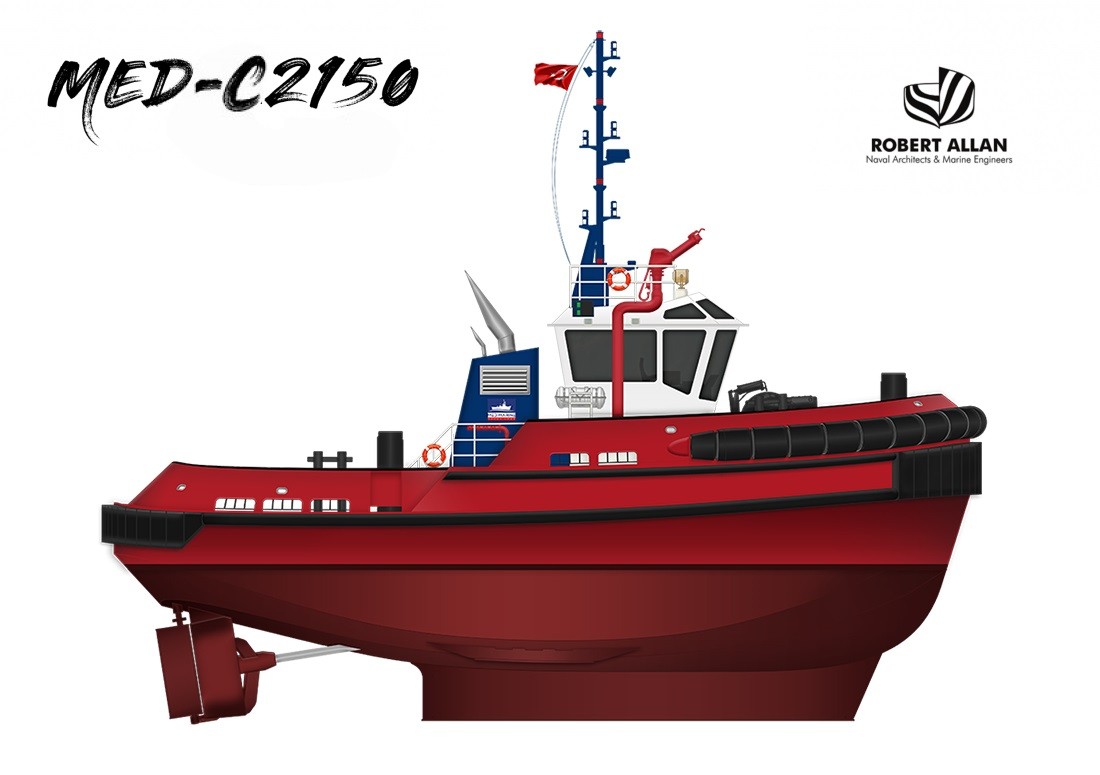

| DESIGN | Robert Allan Ltd. RAscal 2100 TS |
| BASIC FUNCTIONS | Towing, pushing, mooring, fire-fighting |
| CLASSIFICATION | BV I ✠HULL, ✠MACH, TUG, UNRESTRICTED NAVIGATION, ✠AUT-UMS, INWATERSURVEY |
| OPTIONAL | Fire Fighting Ship E - waterspraying |
| DIMENSIONS | |
| LENGTH |
21,40m
|
| BEAM |
11,30m
|
| DEPTH |
4,00m
|
| DRAFT BASELINE |
2,55m
|
| DRAFT EXTREME |
3,90m
|
| GROSS TONNAGE |
< 300
|
| TANK CAPACITIES | |
| FUEL OIL | 47,00 m3 |
| FRESH WATER | 10,00 m3 |
| PERFORMANCES | |
| BOLLARD PULL | 50 tons |
| SPEED | 11 knots (approx.) |
| PROPULSION SYSTEM | |
| MAIN ENGINES |
CATERPILLAR 3512C
|
| TOTAL POWER |
2 x 1765kW @ 1800rpm
|
| EMISSION STANDARD |
IMO Tier II
|
| GEARBOX | ZF W10120 |
| PROPELLERS |
2100mm DIA, NiBrAl
|
| STEERING GEAR | DATA HIDROLIK, DDS 2x3000-45-4 |
| ACCOMMODATION | |
| Accommodation for 5 people, MLC-compliant, high-quality and great comfort. Accommodation is climate-controlled and includes an officer cabin, two single and one double crew cabins. | |
| DECK EQUIPMENT | |
|
FORE (AFT*) TOWING WINCH * Fore towing winch can be used by aft via tunnel. Please see general arrangement for more information. |
Kraijeveld OR EQUIVALENT 200kN electric frequency controlled towing winch with one towing drum. Force and speed ranges : 200 kN at 0-10 m/min65 kN at 0-30 m/min Brake holding force in 1st layer : 1150 kN |
| AFT TOWING HOOK |
DATA HIDROLIK quick release disc type
Type: DTH 70-130P, SWL: 70t
|
| CAPSTAN | Data Hidrolik, electric controlled SWL: 30kN |
| ANCHORS & CHAIN | 1 x 225 kg (HHP) & 19mm Gr2 |
| ANCHOR CAPSTAN |
Data Hidrolik, electric controlled |
| FENDERS | Cylinder, W and D type fendering of rubber |
| AUXILIARY EQUIPMENT | |
| GENERATOR SET | 2 x CATERPILLAR C4.4 86ekW @ 1500rpm 50hz |
| FRESH WATER SYSTEM | Hydrophore System, UV filter, Heater |
| MACHINERY COOLING SYSTEM | Plate cooler type |
| AIR-CONDITIONING |
HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Hot / Cold climate package
|
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| GMDSS AREA | A1+A2 |
| SEARCHLIGHT | 2 x 230 V - 2000 W (Remote Controlled) |
| X-BAND ARPA RADAR | 1 x FURUNO FAR-1518-BB |
| MARINE DGPS NAV. | 1 x FURUNO GP-170 |
| SATELLITE COMPASS | 1 x FURUNO SC-70 |
| DOPPLER SPEED LOG | 1 x FURUNO DS-80 |
| ECHOSOUNDER | 1 x FURUNO FE-800 |
| NAVTEX RECEIVER | 1 x FURUNO NX-700B |
| AIS | 1 x FURUNO FA-170 |
| MF/HF RADIO TEL. | 1 x FURUNO FS-1575 |
| MARINE VHF RADIO TEL. | 2 x FURUNO FM-8900S |
| INMARSAT MINI-C | 1 x FURUNO FELCOM-19 / SSAS |
| EPIRB & SART | 1 x JOTRON TRON 60S & AIS-SART |
| GMDSS HAND HELD VHF | 2 x JOTRON TRON TR30 |
| BNWAS | 1 x FURUNO BR-500 |
| AUTOPILOT | 1 x SIMRAD AP70 Mk2 |
| MAGNETIC COMPASS | 1 x CASSENS&PLATH REFLECTA/3 |
| INTERCOM SYSTEM | 1 x PHONTECH CIS-3100 |
| OPTIONAL | |
| FIFI E SYSTEM |
1 x M/E driven FI-FI pump Capacity; 1400 m3/hr.
1 x Monitor: Foam/water (300/1200m3) remote operated monitor with electric controls
|
| SERVICE BOAT CRANE | Manual Operated Crane SWL: 5kN |
| SERVICE BOAT | REDSEA RS-A-380 |
